Cable-powered Rail Transfer Cart
- Fixed route material transfer
- Short to medium distance
- High-frequency operation
- Not suitable for battery-powered environments
- Annual Production Capacity: 200+ Transfer Carts
- Dedicated R&D team focuse on intelligent handling
- Exported to 15+ countries worldwide

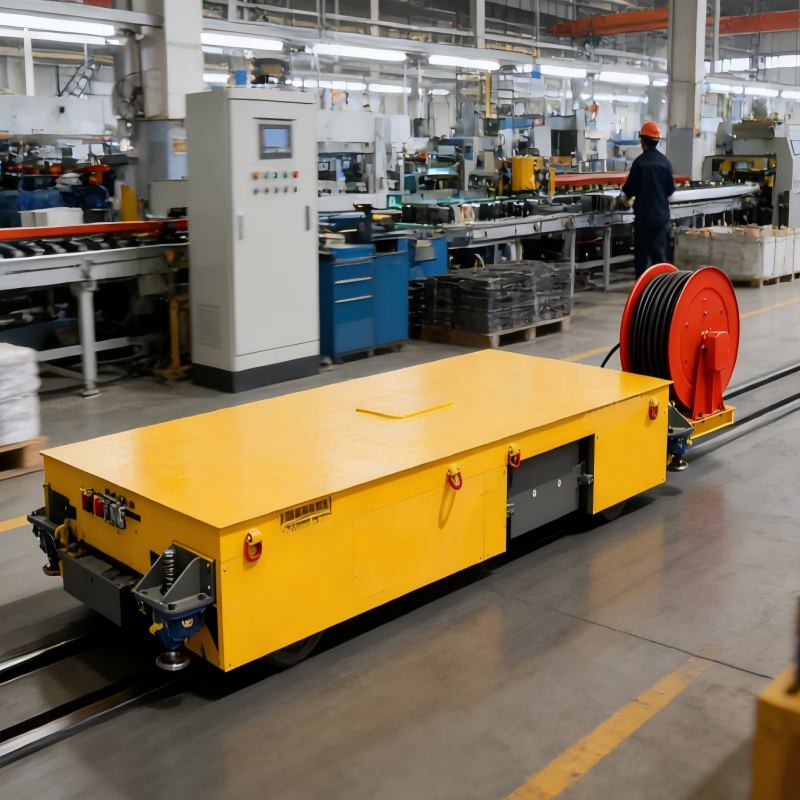

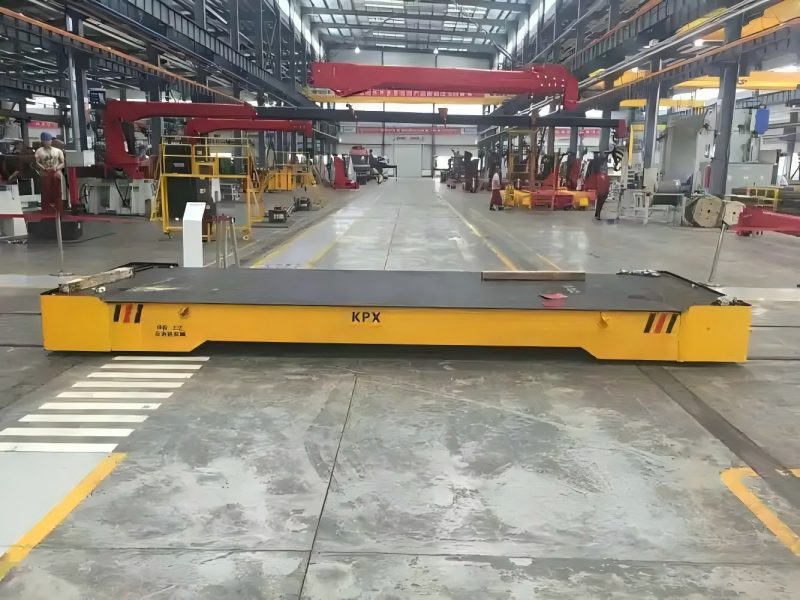

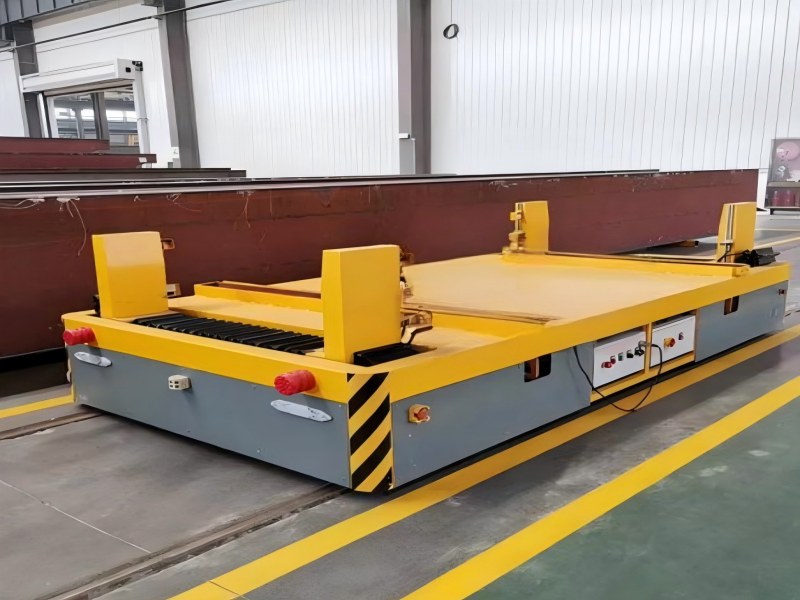

What is A Cable Powered Rail Transfer Cart?
The Cable Powered Rail Transfer Cart is an electric transfer vehicle designed for heavy-duty material handling, powered by an external electrical source and operating along fixed rails. The cart uses cable-based power supply, making it ideal for high-load, high-frequency, and long-duration operations, ensuring stable and reliable performance.

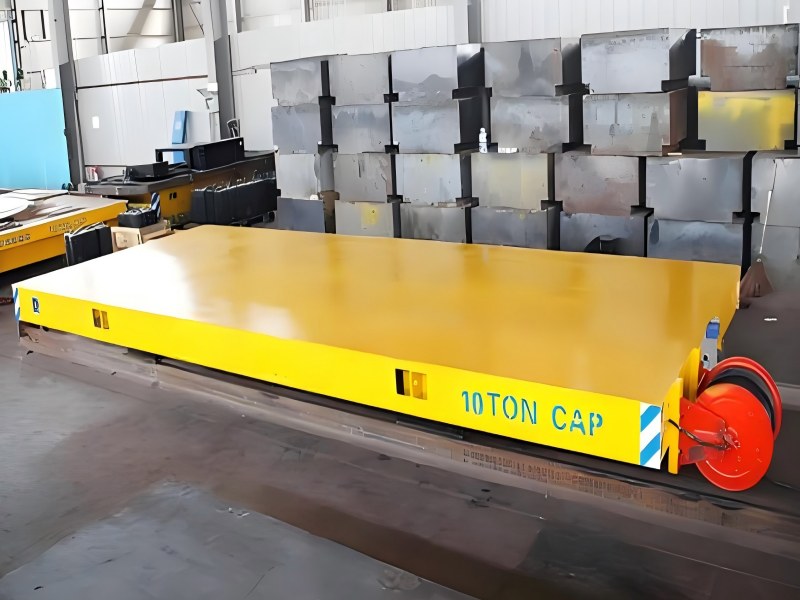

10T Cable Powered Rail Transfer Cart
20T Cable Powered Rail Transfer Cart
50T Cable Powered Rail Transfer Cart
Product Information
- Product Name: Cable Powered Transfer Cart on Rails

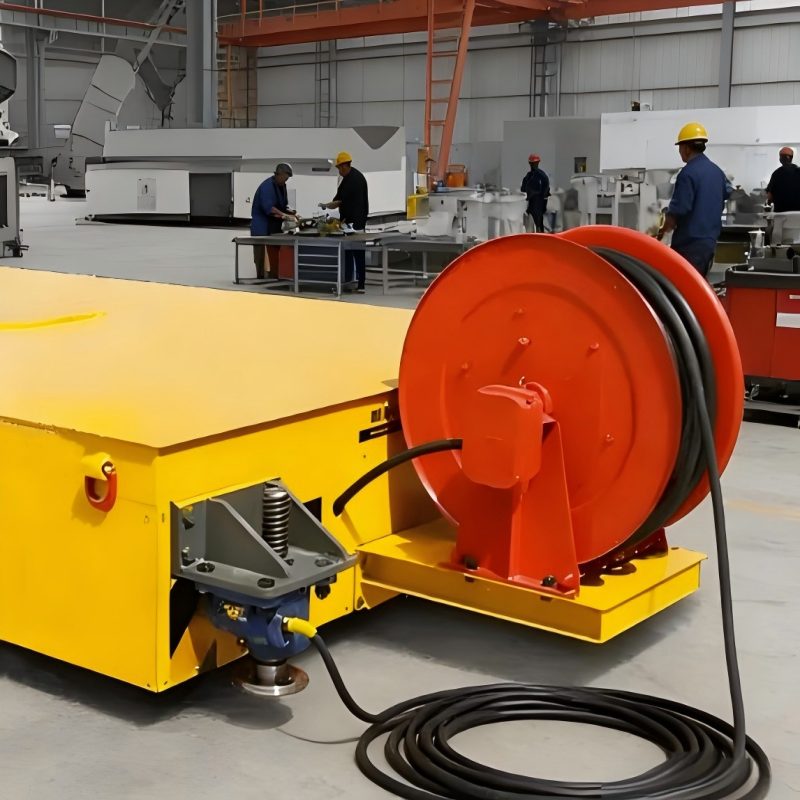

- Power Supply: Cable Drum Power Supply
- Load Capacity 1 - 500 Tons (Customizable)
- Traveling Speed: 0 - 20 m/min
- Control Method: Wireless Remote Control / Manual Control
- Running Direction: Rail Guided
- Rail Type: Optional
- Safety Devices: Laser Scanner, Photoelectric Sensor, Emergency Stop
- Operating Environment: Indoor / Outdoor Industrial Applications
- Protection Level: IP54 / IP65 (Optional)
| Cable-Powered Rail Transfer Cart vs Cable-Powered Trackless Transfer Cart | ||
|---|---|---|
| Comparison Item | Cable-Powered Rail Transfer Cart | Cable-Powered Trackless Transfer Cart |
| Movement Method | Runs on fixed steel rails | Runs directly on the ground without rails |
| Route | Fixed straight rail route | Fixed straight route limited by cable |
| Load Capacity | Very high load capacity, suitable for heavy-duty transport | Medium load capacity |
| Stability | Excellent stability due to rail guidance | Stable on flat ground but less guided than rail systems |
| Turning Ability | Straight-line movement along rails | Straight-line movement only |
| Power Supply | Cable reel or drag chain power supply | Cable reel or drag chain power supply |
| Continuous Operation | Unlimited operation while connected to power | Unlimited operation while connected to power |
| Installation Requirements | Requires rail installation | No rail installation required |
| Infrastructure Cost | Higher due to rail infrastructure | Lower infrastructure cost |
| Maintenance | Periodic rail and cable inspection | Periodic cable inspection |
More Advantages
Stable Continuous Power Supply
Not limited by battery capacity, supports 24-hour continuous operation, especially suitable for multi-shift production environments.
High Reliability
A mature cable-powered supply solution, industrial-grade electrical components, low failure rates, and easy maintenance. No battery replacement required.
Outstanding Heavy Load Capacity
Customizable load capacity from 1T to 500T, ideal for handling steel, molds, large workpieces, etc.
Special Environments
Customizable for high-temperature resistance, explosion-proof, and corrosion-resistant applications
Safety & Protection System
- Emergency stop button
- Travel limit switches
- Overload protection
- Leakage and short-circuit protection
- Anti-collision buffer system
- Audible and visual alarm system
- Advanced Protection Options:
- Laser obstacle avoidance
- Infrared anti-collision
- Multi-cart interlocking anti-collision
Related Product Recommendations
Flexible, suits both indoor and outdoor use, with strong climbing capability
Trackless Transfer Carts
Precise heavy-load transportation along fixed routes, high-efficient handling
Rail Transfer Cart
Customized load capacities, sizs, and operating, delivering tailored solutions.
Custom Transfer Cart
Rapid, secure mold handling, significantly boosting efficiency in stamping, forming and mold change operations.
Die Transfer Cart
Reinforced frames and saddle structures to securely transport steel coils and cylindrical loads without deformation or slippage.

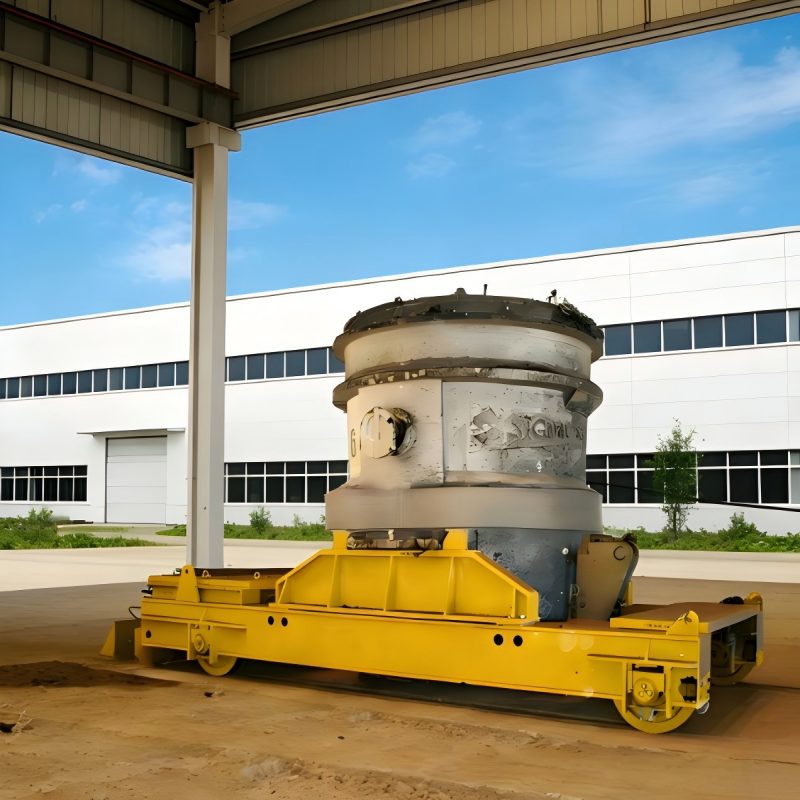

Coil Transfer Cart
Certified explosion-protection, ensuring safe material transport in hazardous areas such as chemical plants and oil & gas facilities.
Explosion-Proof Transfer Cart
Integrate vertical lifting and horizontal transport, enabling precise height alignment with production lines or workstations.
Hydraulic Lifting Transfer Cart
360° rotating transfer carts combine transportation and in-place rotation
Industrial Turntable Transfer Cart
Motor-driven rollers, providing controlled, automated movement of heavy materials across factory floors and conveyor interfaces.
Power Roller Transfer Cart
Automatic navigation transport equipment achieves automatic material transfer between different workstations, production lines, or areas.
AGV Automated Guided Carts
Frequently Asked Questions
The standard maximum load capacity of the cable-powered rail transfer cart is 500 tons. However, we offer custom designs to meet higher or lower load requirements based on customer needs.
The transfer cart can be used in both indoor and outdoor environments. It is widely used in industrial settings such as steel mills, casting workshops, heavy machinery assembly lines, warehouses, and processing areas. We also offer customization for special environments like explosion-proof, high-temperature, and dust-proof conditions.
The cable power supply system has low maintenance costs. Maintenance mainly involves inspecting and maintaining the cables and electrical systems. Compared to battery-powered systems, the cable-powered system does not require frequent battery replacements, making it simpler and more cost-effective to maintain.
Yes, the cable-powered rail transfer cart supports PLC automatic control and can implement multi-station interlock control. We can further customize the automation level based on customer requirements to enhance production efficiency.
The standard running distance for the cable-powered rail transfer cart is ≤200 meters. However, we can also customize the cart for longer running distances based on specific needs, ensuring it meets different operational requirements.
