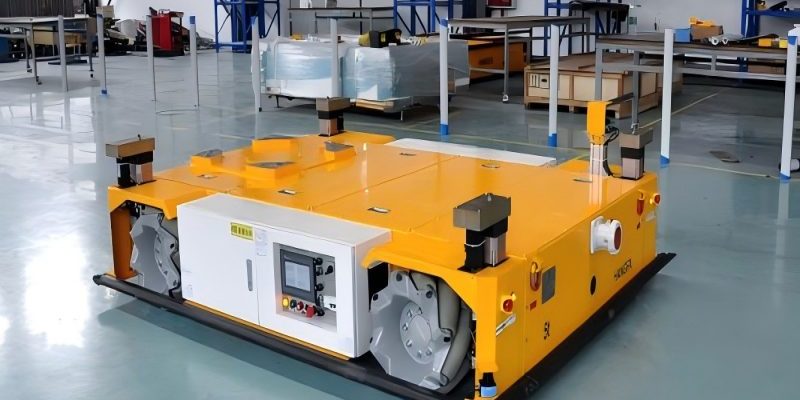

AGV Automated Guided Carts
- 10 years of transfer cart manufacturing experience
- Transfer carts sold to 15+ countries
- A technical team of over 40 professionals
- 1000+ case projects across various industries
- Capacity: 1T-200T
- Operating Speed: 0-30 m/min
- Navigation Accuracy: ±10mm
- Navigation: Laser Navigation (SLAM)/Magnetic Navigation/QR Code
- Control: Onboard Industrial PLC + Central Dispatch System (Supports ≥50 units)
- Drive: Differential Drive/Omnidirectional Drive
- Wheels: Polyurethane-coated wheels/Solid rubber wheels (Oil-resistant, anti-static available)
- Material: Q235 Carbon Steel / 304 Stainless Steel
- Operating Time: Continuous 4-6 hours
- Safety Features: Emergency braking, audible/visual alarms, speed control
- Operating Environment: Indoor/outdoor/temperature-humidity controlled
- Certifications: ISO 9001, UL, explosion-proof (ATEX) available
What is an AGV Automated Guided Cart?
AGV Automated Guided Carts are autonomous navigation transport equipment widely used in various industrial automation scenarios to achieve automatic material transfer between different workstations, production lines, or areas.
Advantages of AGV Automated Guided Cart
- 1-200T Load Capacity: Seamlessly integrates with existing racking or production lines for both lightweight components and heavy molds.
- High Safety: Equipped with 360° laser scanning and multi-level collision avoidance systems compliant with SIL2/PLe safety ratings. Industrial-grade critical components enable active speed reduction and stopping in high-traffic areas.
- Intelligent Scheduling: Fleet management software enables multi-vehicle coordination, dynamic obstacle avoidance, and optimal path planning.
- Low Environmental Requirements: Optional IP54 protection rating for the entire vehicle, featuring fully sealed bearings and corrosion-resistant paint finish.
- Extended Run Time: Supports 4-8 hours of continuous operation.
TONGLIDA AGV Software Certification
Tonglida Scheduling Software, providing a graphical scheduling system with support for integration with MES/WMS.
What is an AGV Automated Guided Cart?
AGV Automated Guided Carts are autonomous navigation transport equipment widely used in various industrial automation scenarios to achieve automatic material transfer between different workstations, production lines, or areas.
Heavy Industry Machinery Cargo Handling
Manufacturing Plant Cargo Handling
Warehouses & Supply-Chain Cargo Handling

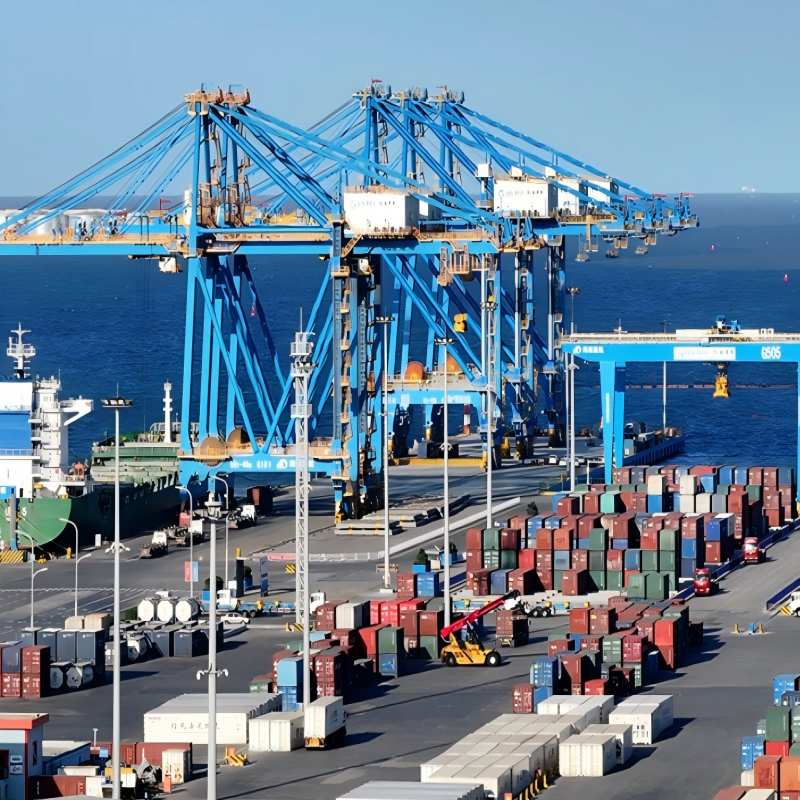

Ports Cargo Handling
Customized Material Transfer Carts
Welded steel structure, low center of gravity design
Motor steering, support for in-situ rotation (depending on the model)
Precise Laying
Charging protection
Wear-resistant, anti-static and flexible steering
Material transporter control + emergency stop
Wheel motors + precision reducer
Collision buffer/alarm, sound and light prompts.
Push button control station / wireless remote control optional.
- Design Assurance: Provide complete design parameters Manufacturing Cycle: Approximately 20-25 working days after payment confirmation (depending on specifications)
- Quality Warranty Period: 1-year warranty, unlimited after-sales consultation. Guaranteed replacement parts compatible with multiple brands
- Response Time: Technical consultation within 2 hours, after-sales service within 2 hours
- Training Services: Provide free training
- Documentation Provided: Operation manual, maintenance manual, spare parts list, certificate of conformity
AGV transfer carts can be configured with magnetic tape navigation, QR code navigation, laser navigation, or inertial navigation, and multiple methods can be combined for complex environments. These navigation options ensure accurate positioning and stable operation in industrial automation settings.
AGV carts use obstacle detection, anti-collision sensors, safety bumper, and emergency stop systems to protect personnel and equipment during unmanned operation. These safety features make AGV applications suitable for mixed environments in smart factory transport.
Yes, we provide customized AGV solution services, including custom design, navigation selection, and intelligent dispatch system integration. This allows AGVs to fit various industrial material handling scenarios such as transfer trolley and electric platform truck applications.
AGV automated guided carts and AGV transfer carts are widely used in manufacturing, logistics, energy, and heavy equipment assembly, especially for industrial material handling AGV applications. They improve efficiency, reduce labor costs, and support smart factory transport through automated and unmanned logistics.
TONGLIDA AGV Navigation Tech
I. Magnetic Strip Navigation
Detects magnetic field signals generated by ground-mounted magnetic strips

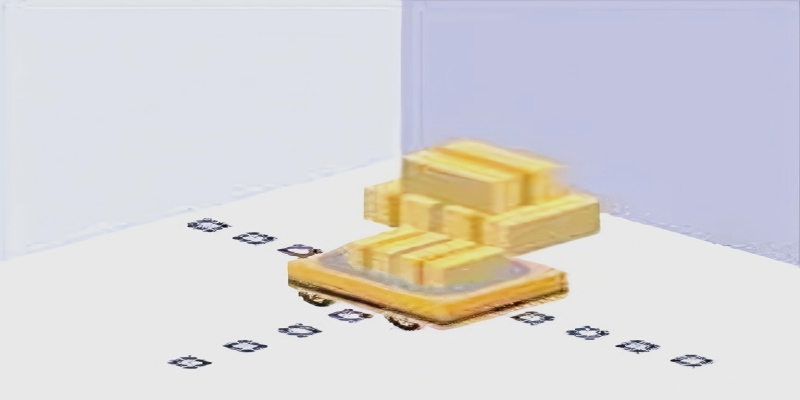

II. QR Code Navigation
Camera scans ground-mounted QR codes to obtain positional data, often combined with inertial navigation systems such as encoders and gyroscopes
III. Laser SLAM Navigation
Lidar scans environmental contours (e.g., walls, pillars) to create maps, enabling positioning and navigation by matching real-time scans with the map
IV. Inertial Navigation
Relies on gyroscopes and encoders to measure angular velocity and distance traveled for position estimation; prone to cumulative errors and rarely used alone
V. Cooperative Navigation
Combines two or more of the above technologies to handle complex or demanding scenarios
Related Products
Flexible, suits both indoor and outdoor use, with strong climbing capability
Trackless Transfer Carts
Precise heavy-load transportation along fixed routes, high-efficient handling
Rail Transfer Cart
Customized load capacities, sizs, and operating, delivering tailored solutions.
Custom Transfer Cart
Rapid, secure mold handling, significantly boosting efficiency in stamping, forming and mold change operations.
Die Transfer Cart
Reinforced frames and saddle structures to securely transport steel coils and cylindrical loads without deformation or slippage.
Coil Transfer Cart
Certified explosion-protection, ensuring safe material transport in hazardous areas such as chemical plants and oil & gas facilities.
Explosion-Proof Transfer Cart
Integrate vertical lifting and horizontal transport, enabling precise height alignment with production lines or workstations.
Hydraulic Lifting Transfer Cart
360° rotating transfer carts combine transportation and in-place rotation
Industrial Turntable Transfer Cart
Motor-driven rollers, providing controlled, automated movement of heavy materials across factory floors and conveyor interfaces.
Power Roller Transfer Cart
Automatic navigation transport equipment achieves automatic material transfer between different workstations, production lines, or areas.
AGV Automated Guided Carts
How AGV Transfer Carts Enhance Industrial Material Handling
- 1. Through automatic/opportunity charging, AGVs achieve 24/7 uninterrupted operation.
- 2. Precision docking: By precisely aligning with conveyor lines, lifts, and warehouse racks, manual forklift handling and alignment time are reduced.
- 3. Optimal Routing: The central dispatch system (FMS) calculates the shortest or fastest path for each AGV based on real-time tasks, eliminating speed fluctuations or detours caused by manual operation.
- 4. Congestion Avoidance: The system dynamically monitors all vehicle locations in real time, implementing traffic control to prevent intersection deadlocks.
