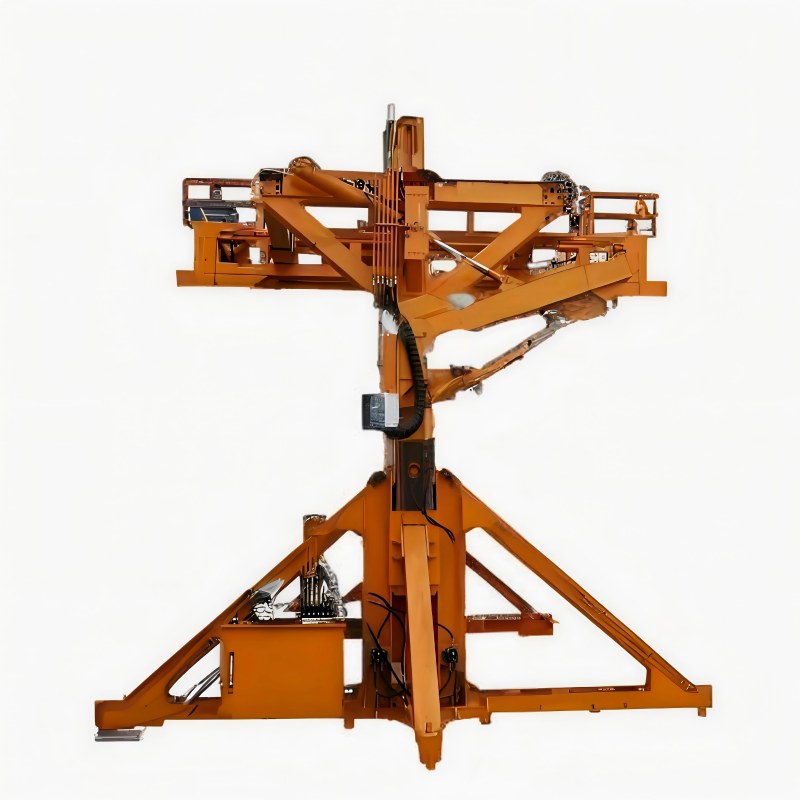

VP Series Container Tilter Manufacturer
- Heavy-duty steel construction for greater stability
- Multi-angle tipping 45°, 90°, 180° for different loading and unloading requirements
- Safe locking: hydraulic locking + mechanical limit
- Hydraulic drive for smooth action and avoiding impact
- Hydraulic components for low maintenance costs
- Faster unloading and loading, within 2-4 minutes
Single Lane Container Tilter
High-strength steel is used for the overall welding, with a load capacity of 20-60 tons.
Twin or multi-cylinder drives provide high torque turning capability.
Mechanical/hydraulic locking ensures no container displacement during tipping.
Supports and distributes the tipping load.
Integrated tank, pump pack, valve pack and other systems.
Push button control station / wireless remote control optional.
- Applicable Container: 20ft
- Rated Load: 20-60 tons
- Flip Angle: 45° / 90° / 180° (Customizable)
- Flip Speed: 0.5-1.5 rpm (Adjustable)
- Hydraulic System Pressure: 16-25 MPa
- Operation Mode: push button control / remote control
- Power Supply: 380-480V, 50/60Hz (optional)
-
Cereal -
Chip -
Ore -
Particles -
Pulp -
Plastic Particle
The standard lead time is 20-30 working days, depending on load capacity and customization.
The unit supports 20–60 tons, with higher capacities available on request.
It can perform 45°, 90°, and 180° tilting with adjustable speed and angle control.
The entire unit is covered by a 12-month warranty, with extended warranty options for key components.
We offer remote guidance or on-site engineering support depending on customer needs.
The machine operates on 380-480V three-phase power.
Container Tilter Workflow
- 1. Loading alignment: empty containers are transported into the tilting machine station by transportation vehicles.
- 2. Lock detection: The operator operates the equipment to make the twist lock on the tilting frame fall down and lock the bottom corner pieces of the container. The sensor detects the locking in place signal.
- 3. Tipping Preparation: The operator selects the tipping mode in the control panel and presses the start button.
- 4. Automatic turning: the hydraulic system drives the turning frame to rotate.
- 5. Loading or unloading
- 6. Reset: When finished, the unit reverses to restore the container to the 0° initial position.
- 7. Unlocking: the twist lock is raised to unlock the container, which is moved out of the work station by the transportation vehicle.
How to Choose a Suitable Container Tilter
- 1. Load and size: Specify the size of the container to be processed and the maximum gross weight.
- 2. Turning angle and precision: Confirm the required angle and the precision of angle control.
- 3. Efficiency: Evaluate the number of tilting times and speed per hour or per day.
- 4. Safety standards: Ensure that the equipment complies with international machinery safety standards.
- 5. After-sales service: Since this is heavy-duty, specialized equipment, reliable installation, commissioning and maintenance support is essential.
