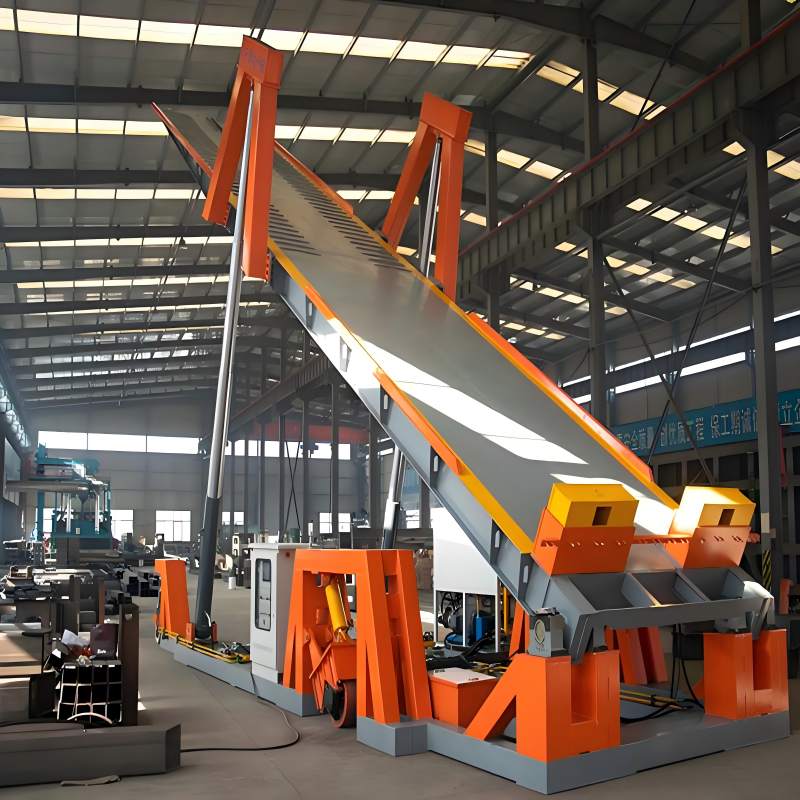

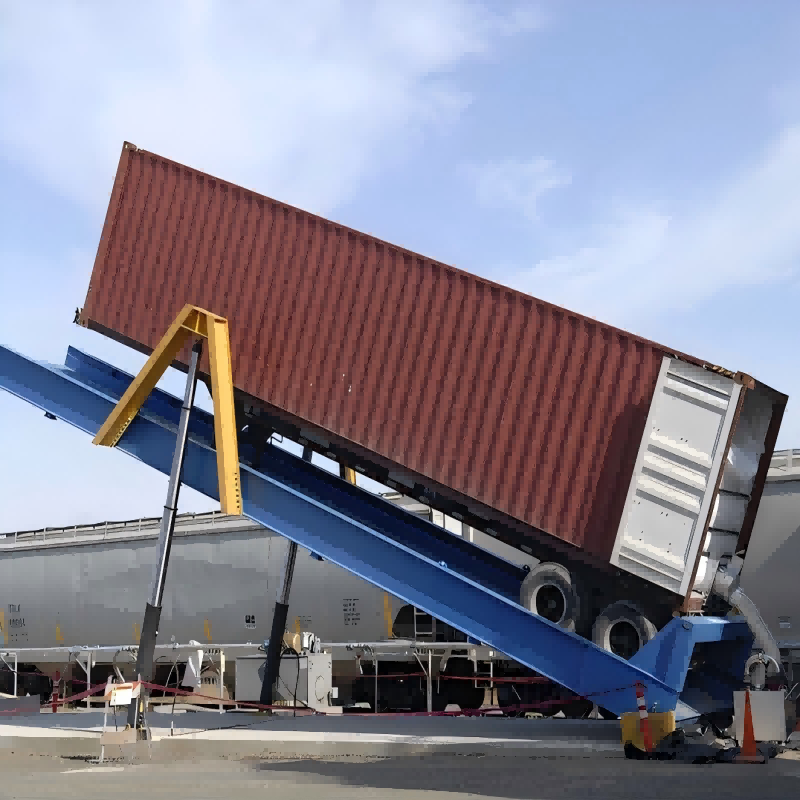

WP Series Container Tilter Manufacturer
- Double interlock: clamping confirmation + safety locking before allowing tilting 30°-45° for unloading.
- Slow start: to avoid cargo impact and hydraulic shock.
- Personnel isolation alarm
- Overload protection: real-time monitoring of hydraulic pressure and automatic shutdown.
- Emergency stop/manual reset mode: manual reset or unlock in case of power failure.
Single Lane Container Tilter
Welded steel structure
Adjustable clamping jaws or clamping belt, with mechanical limit and locking mechanism.
Mechanical/hydraulic locking ensures no container displacement during tipping.
Adjustable clamping jaws or clamping belt, with mechanical limit and locking mechanism.
Integrated tank, pump pack, valve pack and other systems.
Push button control station / wireless remote control optional.
Wedge guide rail or bearing support to ensure smooth and unhindered turning.
Safety devices
Safety devices
- Applicable container: 20ft/40ft (Optional)
- Tilt range: 30°, 35°, 40°, 45° (Adjustable)
- Tilting speed: 0.2-1.0°/s (Adjustable); Typical 45° Tilting Time 45-225 s (incl. clamping and slow stop)
- Single cycle time (clamping → tilting → return → release): 60-300 s (workflow dependent)
- Control: PLC + HMI, manual/semi-automatic/full-automatic modes available
- Hydraulic system working pressure: 12-20 MPa
- Rated Capacity: 20-60 Tonne (Optional)
- Tilting method: Hydraulic drive
- Main motor power (hydraulic pump motor): 7.5-30 kW (depending on load and operating frequency)
- Operating ambient temperature: -10℃ ~ +45℃ (special environments are available for customization)
- Net weight of the equipment: approx. 3-8T (varies according to model)
- Protection level: IP54 (electrical cabinet can be upgraded according to customer's requirements)
-
Cereal -
Chip -
Ore -
Particles -
Pulp -
Plastic Particle
The standard lead time is 20-30 working days, depending on load capacity and customization.
The unit supports 20–60 tons, with higher capacities available on request.
It can perform 30-45° tilting with adjustable speed and angle control.
The entire unit is covered by a 12-month warranty, with extended warranty options for key components.
We offer remote guidance or on-site engineering support depending on customer needs.
The machine operates on 380-480V three-phase power.
- Daily inspection: Hydraulic oil level, exposed tubing, clamp wear, emergency stop/interlock function
- Weekly inspection: Filter element, connector tightness check
- Quarterly inspection: Hydraulic oil quality, seals, bearing lubrication, PLC backup
- Annual inspection: Crack detection in main structure, complete hydraulic system overhaul
Container Tilter Workflow
- 1. Transportation truck/forklift positions container at workstation.
- 2. Operator confirms safety zone and initiates clamping; fixture lock is confirmed to allow movement.
- 3. PLC initiates tilt at set angle and speed, stops at set angle and holds (can be timed or manual) to complete unloading.
- 4. When finished, the PLC controls the return position and releases the fixture for the next cycle.
How to Choose a Suitable Container Tilter
- 1. Maximum container size (20 / 40 / 40HC)
- 2. Rated load (t)
- 3. Required tilt angle (30 / 35 / 40 / 45°)
- 4. Power specifications (V / Hz)
- 5. Site constraints (available length / access width / lifting conditions)
- 6. Whether explosion-proof / corrosion-resistant / installation service / site commissioning is required
